特征：
FPA解析度：256像素（像素：600 um x 60 um）
读出方法：卷帘门（xy寻址）
读出通道：2个A / D通道
接口：具有工业连接器的USB 2.0
金属外壳：IP67等级
光学：f = 35毫米，F＃1.1，CS安装，IP67
可下载文件：LUXELL_SERIES
应用领域：
工业过程控制（扫描）
玻璃制造业
气体和火焰检测
技术指标：
| DETECTOR | VPD PbSe LUXELL FPA 256, uncooled performance at room temperature |
| FPA FORMAT | Lineal array, 1×256 pixels |
| PIXEL SIZE | 600 um (H) x 60 um (W) |
| SPECTRAL RANGE OF DETECTION | MWIR (1.0 to 5.0 microns) |
| PEAK WAVELENGTH OF DETECTION | 3.7 microns |
| OPTIMUM TEMPERATURE DETECTION RANGE | >100 ºC |
| INTEGRATION TIME (US) | Configurable: 4 – 20 microseconds |
| LINE RATE | 300 lines per second (max) |
| READOUT METHOD | Rolling shutter, 2 ADC channels |
| COMMUNICATION INTERFACE | USB 2.0 High-Speed |
| DATA COMMUNICATION | 14 bit |
| TRIGGER | No |
| START-UP TIME | < 10 seg |
| POWER | 1 W (5 VDC, 0.2 A) – USB powered |
| EXTERNAL HOUSING | Metal housing with CS-mount optics interface, industrial USB 2.0 connector (M12x1) and screw holes for tripod Includes water block for thermal stabilization of FPA with water or air IP67-rated |
| OPTICS | Silicon lens with AR coating, f=35 mm, F#1.1 FoV: 25º (h) x 1º (v), manual focus, CS-mount optics interface (dettachable) FoR (@1m) = 440 mm (h) x 17 mm (v) |

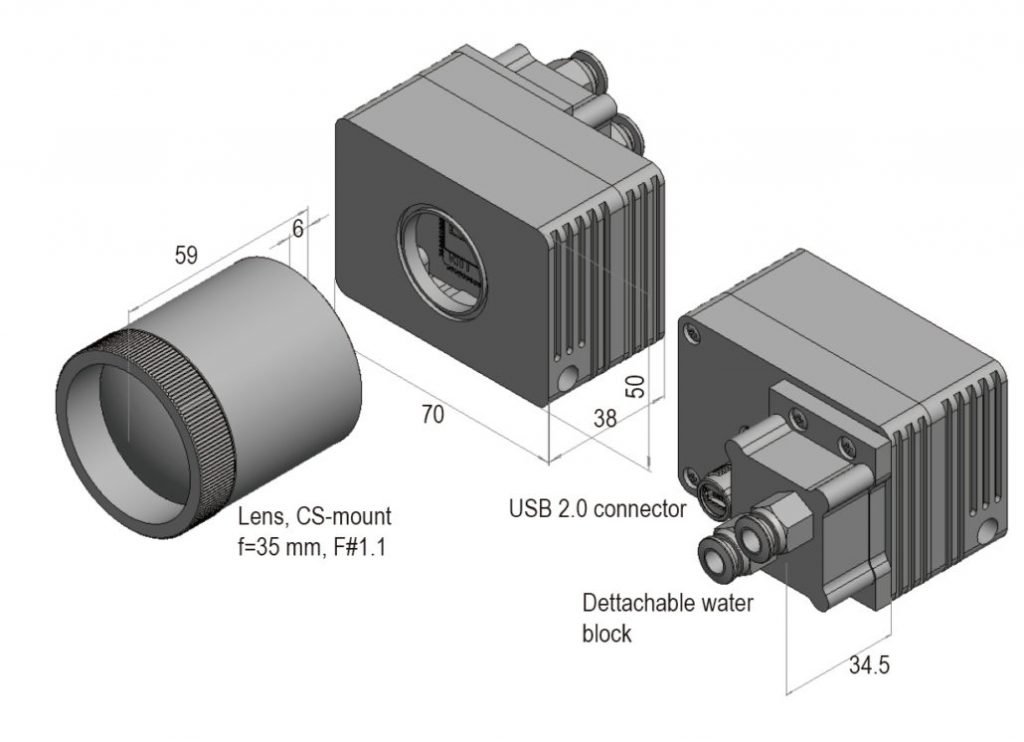

| CAMERA-S SIZE WITH HOUSING, WATER BLOCK AND LENS, MM) | 70 (L) x 131.5 (W) x 50 (H) |
| OTHER INFORMATION | Mechanical shutter for 1-pt offset |
| SOFTWARE | NIT SOFTWARE SUITE (Acquisition and visualization SW), LabVIEW SDK |
| THE SYSTEM INCLUDES | 1x LUXELL CAMERA-S with lens f=35 mm 1x USB cable with industrial connector |
整个系统（电子模块，金属外壳和镜头）达到IP67等级
