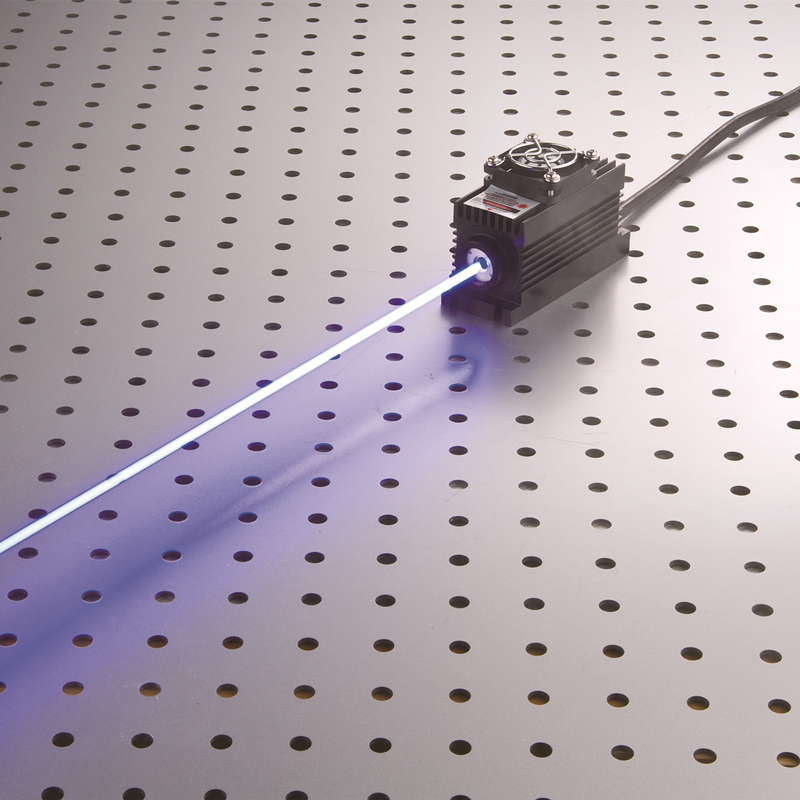

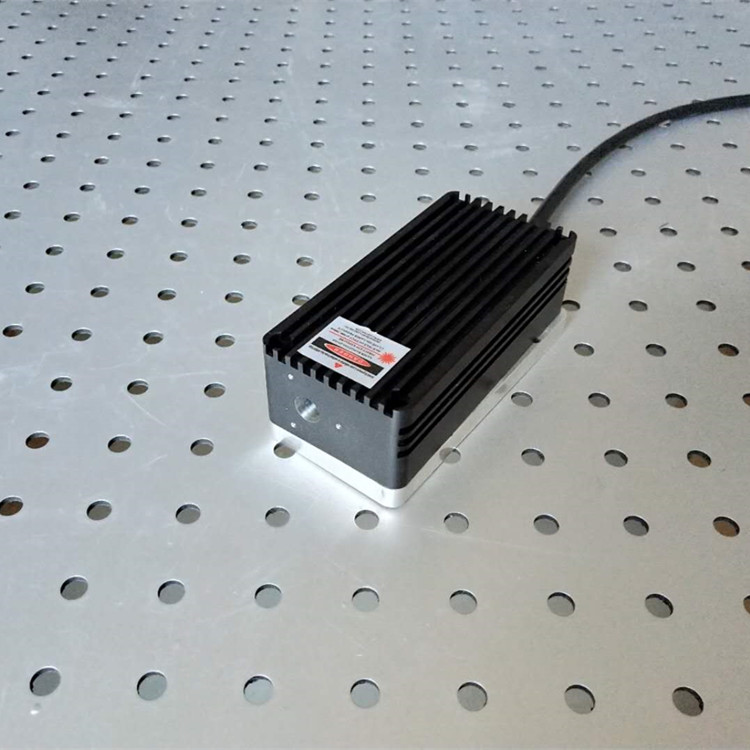

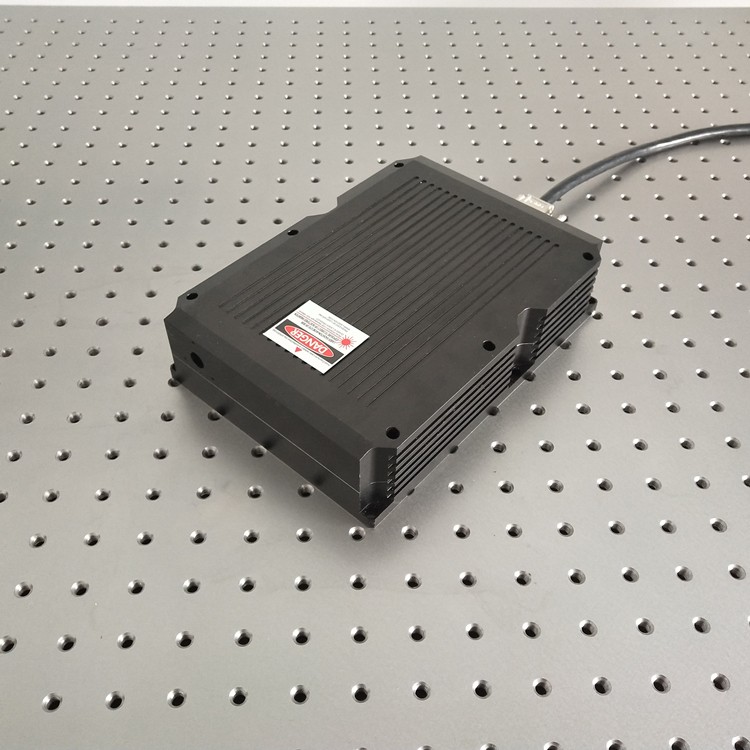

405nm蓝紫光半导体激光器
LSR405NL LSR405CPD LSR405CP
| 机型 | 光斑模式 | 功率 |
| NL | tem00 | 100mW~250mW |
| NL | near tem00 | 300mW~800mW |
| CPD | tem00 | 500mW |
| CPF | Multi mode | 1W~14W |
所有机型的激光器均可以另外添加光纤耦合，成为光纤激光器
通用参数：
| 波长/Wavelength | 405+/-5 nm | |
| 输出功率/Output Power | 100mW,150mW,250mW,280mW | 300mW,500mW,800mW |
| 光斑模式/Spatial Mode | TEM00 | Multi mode |
| 工作方式/Operation Mode | CW or Modulation | |
| 光束高度/Beam Height | 25mm | |
| 光束尺寸/Beam Size | <5mm | 4x2mm |
| 光束发散角/Beam Divergence(full angle) | <0.3mrad | 1x0.4mrad |
| 功率稳定性/Power Stability | <3% per 4 hrs | |
| 温度稳定方式/Temperature Stabilizing | TEC | |
| 预热时间/Warm Up Time | <1 minute | |
| 使用寿命/MTTF | 10,000 hr | |
| 激光器尺寸/Laser head dimensions | 100(L)x40(W)x50(H)mm3 | |
| 调制频率/Modulation | 0~30khz Analog or TTL | |
