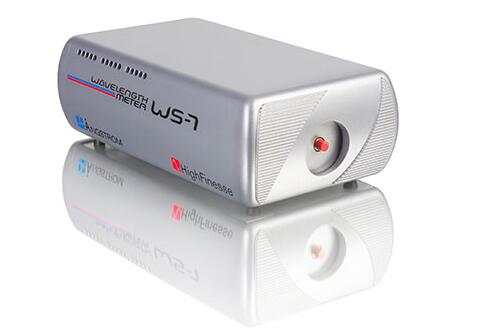

超高精度波长计

优势：

·宽光谱范围。192nm-11um的波长范围。

·绝佳的测量精度以及超快的测量速度，最高精度可达2MHz。

·可测量连续或者脉冲激光。

·方便快捷的光纤耦合输入选项，助您更好更快的完成波长测量。

·供电和数据采集通过USB与个人电脑连接。操作软件安装便捷，使用高效。

·波长计设计稳固紧凑，不再需要其他光学组件或者模块。

·波长锁定功能可选

			LSA	WS5	WS6-600	WS6-200	WS7	WS7-30	WS8	WS8-2
测量范围	standard	330 - 1180 nm	✓	✓	✓⁵⁾	✓	✓	✓	✓	✓
	UV-I	248-1180 nm	✓	✓	✓	✓	✓	✓	✓
	UV-II	192-800 nm		✓	✓	✓	✓
	UV-II/VIS	192-1180 nm	✓
	VIS/IR	330-1750 nm	✓	✓	✓	✓
	VIS/IR-II	500-2250 nm	✓	✓	✓	✓
	IR-I	630-1750 nm	✓	✓	✓⁶⁾	✓⁶⁾	✓	✓	✓
	IR-II	1000-2250 nm	✓	✓	✓	✓	✓	✓
	IR-III	2-11 µm	✓	✓		✓
绝对精度		192-330 nm [pm]	6	3	0.6	0.4	0.2	0.1	0.1	0.1
		330-420 nm [pm]	3	2	0.3	0.2	0.04	0.02	0.01	0.01
		420-1100 nm [MHz]	6000	3000	600	200	60	30	10¹⁾	2²⁾
		1100-2250 nm [MHz]	12000	2000	400	150	40	20	10¹⁾
		2-11µm [MHz]	1-5 nm³⁾	3000		200
校准			Built-in⁴⁾	Built-in⁴⁾	Built-in	Built-in⁴⁾	Built-in⁷⁾	External	External	External

1) ± 200 nm around calibration wavelength
2) ± 2 nm around calibration wavelength
3) depending on device type
4) except IR-III
5) FAST-option: measurement speed 24 kHz
6) FAST-option: measurement speed 50 kHz
7) exept IR-I, IR-II
