The unique features of the laminate MIROGARD® Protect Ultra include its extremely light weight and the minimum thickness of the extra-clear low-iron float glass. This makes switching over to MIROGARD® Protect Ultra from conventional picture glazing extremely quick and easy. Furthermore, it absorbs 99.9% of UV radiation and offers extremely good protection against splinters.

Of course, it also comes with the high-quality anti-reflective coating that the MIROGARD® family of products is known for.

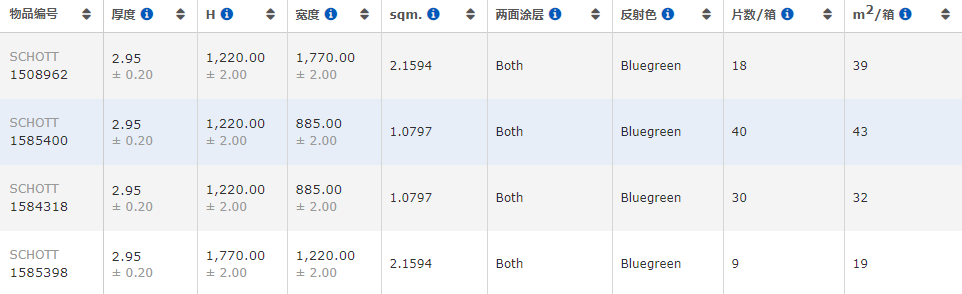

The dimensions given are usually net dimensions without dipping edge. The gross dimension is supplied including the dipping edge.


一般说明

SCHOTT MIROGARD® vs. conventional Float Glass

<p conventional="" float="" glass="" reflects="" approximately="" 8="" %="" of="" incident="" light.="" this="" results="" in="" undesirable="" reflections.=""

MIROGARD® glass reduces reflections in the visible spectrum to under 1% and thus allows for an unadulterated view of art.


 MIROGARD®MIROGARD® plusMIROGARD® ProtectMIROGARD® Protect Ultra
Reflectance
ρvA %		~ 0.9%~ 1.1%~ 0.9%~ 0.9%
Transmittance
τvA %		~ 99%~ 98%~ 98%~ 98%
Mechanical protection effectlowlowmedium
to high		medium
to high
Splinter protection✗✗✓✓
UV Protection
(300 – 380 nm)		~ 48%~ 82%~ 99%~ 99%

Coating durability

SCHOTT makes an enormous technical effort to provide a nearly reflection-free view: MIROGARD® anti-reflective glass is dip-coated using the sol-gel process.

All products have passed the following tests:
- copper chloride acetic acid spray test
- sliding abrasion with Taber Abraser process
- adhesive tape test
- alcohol rubbing test
- stylus test
