When the space behind the glass is dark, SCHOTT MIRONA® glass is an elegant mirror. Light transforms it into a transparent window – a surprising phenomenon that enables sophisticated staging of spaces and objects.

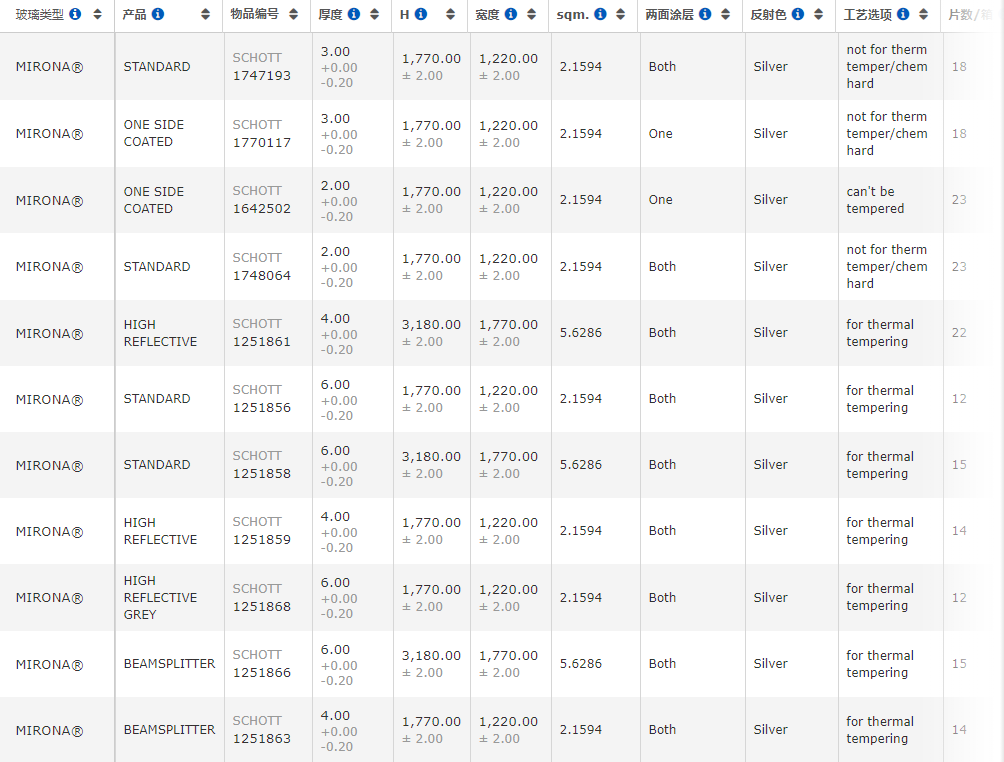

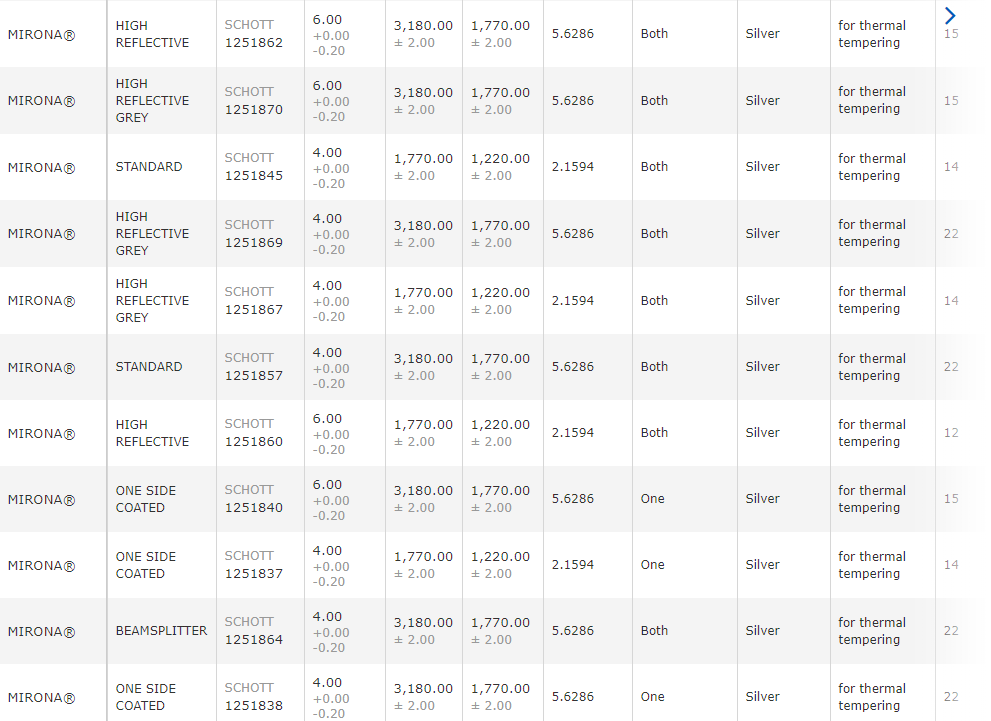

The dimensions given are usually net dimensions without dipping edge. The gross dimension is supplied including the dipping edge.image.pngimage.pngimage.png

一般说明

Thanks to the new MIRONA® glass product family, we have been able to combine two functions that traditionally juxtapose one another – reflection and transmission.
Variant diversity of MIRONA® for different applications enable refined spatial- and object installations.


ProductLight
transmittance τvA %		Visual reflectance
ρvA %
MIRONA® StandardBoth side coated extra-clear low-iron float glass with an optical interference layer that enables defined reflection and transmission.63 ± 534 ± 5
MIRONA® High ReflectiveExtra-clear low-iron float glass coated on both sides with the “High Reflective Coating”. This optical interference layer enables higher reflection and defined transmission.42 ± 555 ± 5
MIRONA® BeamsplitterExtra-clear low-iron float glass with an anti-reflective coating on one side and the “High Reflective Coating” on the other. This allows for a defined reflection and transmission with virtually no annoying double reflection.59 ± 536 ± 5
MIRONA® High Reflective GreyGrey float glass (as base glass) coated on both sides with the “High Reflective Coating,” an optical interference layer that enables higher reflection and defined transmission.20 ± 5 42 ± 5
MIRONA® High Reflective - One Side CoatedOne side coated extra-clear low-iron float glass only to produce MIRONA® Beamsplitter as laminated safety glass.57 ± 540 ± 5
