产 品 说 明

ASE光源ASE-1920-10  -1900nm波段-

ASE（放大自发辐射）光源是宽带光源，具有高亮度和宽的光谱范围。

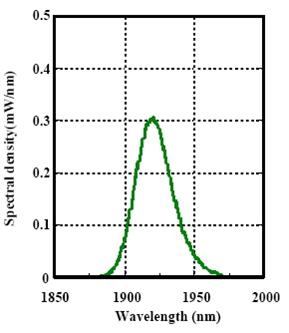

1. ASE光谱







2. 标准规格




Item

ASE-1920-10

Total Output Power

>10dBm(>10mw)

Output Wavelength Band

1900nm-band

Center Wavelength

1920nm

FWHM(Full width Half Maximum)

30nm:typical

Output Power Stability

+/-3%: typical

Output Fiber

SMF

Output Optical Connector

FC/angled-PC

Size(mm)*1

88mm(H)x260mm(W)x350mm(D)

Operation Temperature

0~40 Deg.C

Storage Temperature

-10~60 Deg.C

Weight

6Kg

Power Supply

AC100-240V(50/60Hz)

*1:Not including protrusions.





3.    选择项




Option 012

SC/angled-PC optical connector

Option 066

1900nm isolator

·The specifications are subject to change.

·All functions,characteristics and exterior design can be optimized according to customer requirements.
